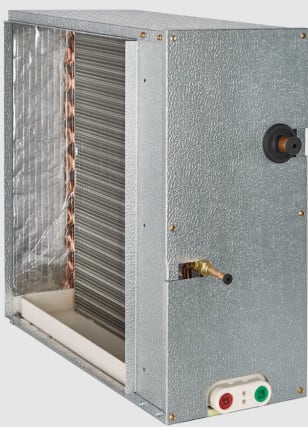

ADP® HH59130A265A2102AP HH Series 2.5 Ton Cased Horizontal Slab Coil, 3/8 in Liquid Line, 7/8 in Suction Line, 13 SEER, With Access Port

Part #266293

MFG #HH59130A265A2102AP


ADP® HH59130A265A2102AP HH Series 2.5 Ton Cased Horizontal Slab Coil, 3/8 in Liquid Line, 7/8 in Suction Line, 13 SEER, With Access Port

Part #266293

MFG #HH59130A265A2102AP

Sign In to See Your Price

ADP® HH59130A265A2102AP HH Series 2.5 Ton Cased Horizontal Slab Coil, 3/8 in Liquid Line, 7/8 in Suction Line, 13 SEER, With Access Port

Part #266293

MFG #HH59130A265A2102AP

Item Features
  • High efficiency lanced fin design

  • “No-hassle” 5-year warranty

  • R-22, R-410A, AC & Heat Pump compatible

  • All coils have durable packaging with bar coded labels on the box

  • Threaded expansion valves available factory installed or as a field installed kit

  • Coils are air pressure tested at 500 psi, leak tested with helium, sealed with rubber plugs, then charged with dry air

  • Piston options include externally accessible body for easy piston change out and/or TXV installation

  • Liquid line refrigerant connections are 3/8" ODF

  • Suction line refrigerant connections are 7/8" ODF

  • Microban® antimicrobial additive to inhibit the growth of mold and mildew in the drain pan

  • UV resistant drain pans are molded of high temperature (450° F) engineered polymer

  • Cased coil cabinets are fully lined with 5/8" foil faced insulation

  • Non-captive refrigerant lines with long stubs make for easy installation

  • Copper distributor tube assembly provides brass to brass threads for trouble-free service of TXV

  • Corrosion resistant coil header plates
