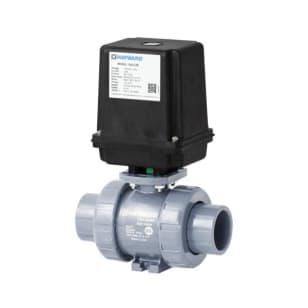

Hayward Flow Control EATBH120STE TBH Series Actuated Ball Valve, 2 in Nominal, Socket/Threaded End Style, PVC/GFPP Body, 120 VAC

Part #18158

MFG #EATBH120STE


Hayward Flow Control EATBH120STE TBH Series Actuated Ball Valve, 2 in Nominal, Socket/Threaded End Style, PVC/GFPP Body, 120 VAC

Part #18158

MFG #EATBH120STE

Sign In to See Your Price

Hayward Flow Control EATBH120STE TBH Series Actuated Ball Valve, 2 in Nominal, Socket/Threaded End Style, PVC/GFPP Body, 120 VAC

Part #18158

MFG #EATBH120STE

Item Features
  • System2TM Sealing Technology for longer life cycle.

  • 250 PSI / 16 Bar, non-shock at 70 deg F / 23 deg C full pressure rating.

  • Consistent operating torque with adjustment-free design.

  • ISO mounting flange.

  • Permanent markings, eliminates labels.

  • Integral footpad for skid or panel mount.

  • FPM or EPDM seals.

  • Double O-Ring stem seals.

  • Easy replacement for existing Hayward TB Series.

  • GFPP NEMA 4 / 4X Enclosure.

  • 2.5 Second, 90 deg Cycle Time.

  • Permanently Lubricated Gear Train.

  • Actuator Brake.

  • 90 or 180 deg Operation.

  • Unidirectional, Not Reversing.

  • Terminal Block Connections.

  • Standard 120 VAC.

  • End of Travel Dry Contact Limit Switch.

  • Thermal Overload Protection.

  • Lightweight, Compact and Inexpensive.
