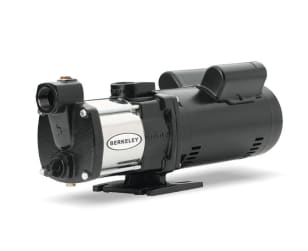

Berkeley B82456-01 Multi-Stage Irrigation Pump, 230 V, 15 ft Max Suction Lift

Part #133508

MFG #B82456-01


Berkeley B82456-01 Multi-Stage Irrigation Pump, 230 V, 15 ft Max Suction Lift

Part #133508

MFG #B82456-01

Sign In to See Your Price

Berkeley B82456-01 Multi-Stage Irrigation Pump, 230 V, 15 ft Max Suction Lift

Part #133508

MFG #B82456-01

Item Features
  • Available in 3-stage or 4-stage designs for more options in head/flow..

  • Self-priming design - Once initially primed, the SSHM-2 will automatically re-prime cycle after cycle..

  • Cast iron motor bracket & integral pedestal for rigid pipe connections and base mounting..

  • Suction flange is made of heavy-duty cast iron..

  • Precision molded extra-smooth ports to maximize efficiency and performance..

  • Special brass priming valve, proven to provide trouble-free operation during the priming cycle..

  • Polished 304 Stainless Steel Outer shell.

  • 303 Stainless Steel shaft.

  • High-pressure, carbon-ceramic seal faces. Buna-N elastomers Mechanical seal.

  • 2 HP, 3450 RPM, 230v, High service factor, drip-proof design Motor.

  • 2 hp horsepower.

  • 1-1/4 in NPT discharge.

  • 4 stages.
