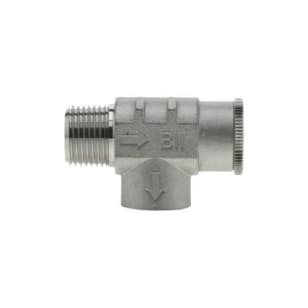

Boshart Industries SSRVN07-075 Pressure-Relief Valve, 3/4 x 1/2 in, MPT x FPT, 75 psi, 304 Stainless Steel Body
Part #135249
MFG #SSRVN07-075
Boshart Industries SSRVN07-075 Pressure-Relief Valve, 3/4 x 1/2 in, MPT x FPT, 75 psi, 304 Stainless Steel Body
Part #135249
MFG #SSRVN07-075
Sign In to See Your Price
Boshart Industries SSRVN07-075 Pressure-Relief Valve, 3/4 x 1/2 in, MPT x FPT, 75 psi, 304 Stainless Steel Body
Part #135249
MFG #SSRVN07-075
- Item Features
- Attributes
- Documents
Item Features
- Relief valves are recommended for all cold water system installations to protect against damage to piping and pressure tanks
- Field adjustments are not recommended for these relief valves
- Any changes made to the pre-set pressure is entirely at the risk of the person(s) / company who make the adjustment
- Relief valves must be installed so that they drain to a floor drain, sump or other safe location with an air break
- If an outlet pipe is used then it must be at least the same diameter as the relief valve outlet
- Lead-free
Attributes
Material[
"PTFE",
"304 Stainless Steel"
]
Size3/4 X 1/2 in
SeriesSSRVN
End StyleMPT x FPT
Pressure Rating75 psi
Temperature Rating248 deg F
Actuator TypeSpring
Dimensions2.45 in L x 0.94 in W
Documents
