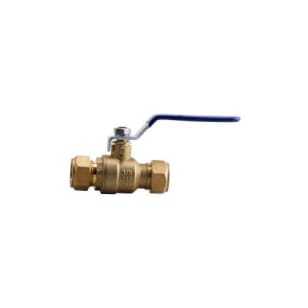

Boshart Industries 082CP-05NL Brass Ball Valve With Drain, 1/2 in, 200 psi, Compression, Forged Brass Body, Standard Port, EPDM/PTFE/Steel
Part #136635
MFG #082CP-05NL
Boshart Industries 082CP-05NL Brass Ball Valve With Drain, 1/2 in, 200 psi, Compression, Forged Brass Body, Standard Port, EPDM/PTFE/Steel
Part #136635
MFG #082CP-05NL
Sign In to See Your Price
Boshart Industries 082CP-05NL Brass Ball Valve With Drain, 1/2 in, 200 psi, Compression, Forged Brass Body, Standard Port, EPDM/PTFE/Steel
Part #136635
MFG #082CP-05NL
- Item Features
- Attributes
- Documents
Item Features
- Brass Ball Valves with a drain are perfect for applications where water needs to be drained from the pipe after the valve
- When installing one of these valves make sure the drain is not installed on the supply side of the valve
- CUPC Standard IGC 157
- Lead-free
Attributes
Material[
"Forged Brass",
"EPDM/PTFE/Steel"
]
Size1/2 in
Series082CP-NL
End StyleCompression
Pressure Rating200 psi
Temperature RatingUp to 300 deg F
Port TypeStandard
MediaGas/Oil/Water
Orifice Size0.59 in
Actuator TypeRubber Grip Handle
Ball MaterialChrome Plated
Dimensions4.72 in L x 3.03 in W x 1.77 in H
