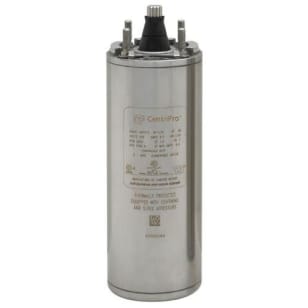

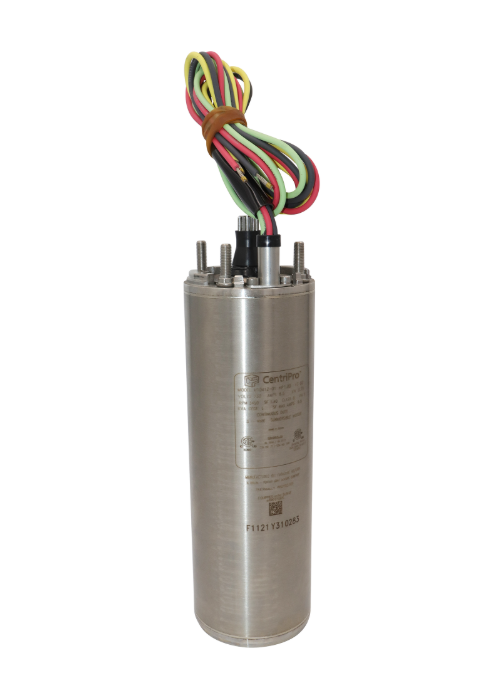

CentriPro M10412 Submersible Pump Motor, 1 hp, 230 VAC, 60 Hz, 1 Phase, 3450 rpm Speed
Part #690
MFG #M10412
CentriPro M10412 Submersible Pump Motor, 1 hp, 230 VAC, 60 Hz, 1 Phase, 3450 rpm Speed
Part #690
MFG #M10412
Sign In to See Your Price
CentriPro M10412 Submersible Pump Motor, 1 hp, 230 VAC, 60 Hz, 1 Phase, 3450 rpm Speed
Part #690
MFG #M10412
- Item Features
- Attributes
- Documents
Item Features
- Use with our CentriPro quick disconnect or CSCR style control boxes.
- Laser welded 21st Century welding technology for improved welds.
- 700 lb thrust rating much higher than competitive motors.
- Precision machined, 1-piece, stainless steel castings used for upper and lower end bells.
- Water filled design with non-toxic propylene glycol solution to protect the motor during shipping and storage.
- Built-in check valve allows well water to enter motor as needed.
- Replaceable motor lead is held in place by two screws for controlled compression, no danger of stripping the lead threads.
- 4 in motor.
Attributes
Amperage Rating8.4 A
Bearing TypeThrust
Dimensions3.75 in OD x 11.7 in L
Frequency Rating60 Hz
Horsepower1 hp
MaterialStainless steel
Phase1
RotationCCW
Service Factor1.4
Speed3450 rpm
Temperature Rating86 deg F
Voltage Rating230 VAC
