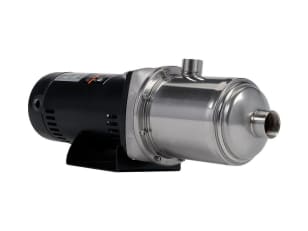

FPS 96061502 MH Series Booster Pump, 1 hp, 1-1/4 in FNPT Inlet 1-1/4 in FNPT Outlet, 115/230 VAC, Single Phase, Stainless Steel, Horizontal Mount

Part #133877

MFG #96061502


FPS 96061502 MH Series Booster Pump, 1 hp, 1-1/4 in FNPT Inlet 1-1/4 in FNPT Outlet, 115/230 VAC, Single Phase, Stainless Steel, Horizontal Mount

Part #133877

MFG #96061502

Sign In to See Your Price

FPS 96061502 MH Series Booster Pump, 1 hp, 1-1/4 in FNPT Inlet 1-1/4 in FNPT Outlet, 115/230 VAC, Single Phase, Stainless Steel, Horizontal Mount

Part #133877

MFG #96061502

Item Features
  • All 300 series stainless steel wetted components.

  • FKM mechanical shaft seal for added chemical resistance.

  • Available in 3 flow rates 15, 30, and 45 gpm.

  • 5 motor hp size options in 1-phase or 3-phase.

  • High-pressure capabilities - 140 psi.

  • Able to pump fluids at temperatures up to 225 deg F.

  • Can operate in suction lift installation up to 10 ft.

  • Compact close-coupled design.

  • Robust and Rust resistant.

  • Superior efficiency and Performance.

  • Heavy-duty oversized motor shaft.

  • Impellers and diffusers made of 300 series stainless steel for maximum durability.

  • Easy maintenance.

  • Robust ball bearing fitted into the motor bracket for greater longevity.

  • Flexible application baseplate.

  • Floating neck ring in PPS.

  • Strong and leak-proof ball bearing fitted in the motor.

  • Pumping of clear non-loaded fluids.

  • Mechanical seal carbon/silicon carbide/EPDM.

  • Three-phase, 2-pole motor efficiency class IE3 asynchronous, TEFC (Totally Enclosed, Fan-Cooled), insulation class F.
