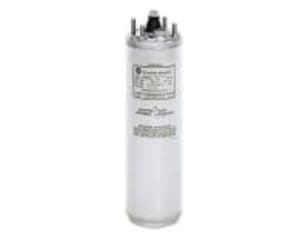

Franklin Electric 95961040 10FS07S4-3W230 4" Submersible Well Pump, 10GPM, 3 Wire, 10 Stages, 290 ft Max Lift, 3/4 hp, 230 V, Stainless Steel

Part #909

MFG #95961040 10FS07S4-3W230


Franklin Electric 95961040 10FS07S4-3W230 4" Submersible Well Pump, 10GPM, 3 Wire, 10 Stages, 290 ft Max Lift, 3/4 hp, 230 V, Stainless Steel

Part #909

MFG #95961040 10FS07S4-3W230

Sign In to See Your Price

Franklin Electric 95961040 10FS07S4-3W230 4" Submersible Well Pump, 10GPM, 3 Wire, 10 Stages, 290 ft Max Lift, 3/4 hp, 230 V, Stainless Steel

Part #909

MFG #95961040 10FS07S4-3W230

Item Features
  • Designed for use in 4" and greater diameter water well applications.

  • Eight performance ranges: 5, 8, 10, 12, 16, 18, 22 or 26 GPM.

  • Horsepower ranges: 1/2 to 5.

  • Exceeds all industry standards for quality manufacturing processes and operational safety.

  • Constructed from drinking water safe materials that are non-leeching and lead-free.

  • All stainless steel components are 300 series grade or better.

  • Industry-standard discharge head and NEMA motor connection bracket produced with proven, reliable, and durable materials. Available in 300 series stainless steel or engineered thermoplastic resins.

  • 1.25" NPT discharge pipe connection with sufficient wrench flat area allows for quick and easy installation.

  • Plastic outlet connection pumps have a Flomatic VFD style check valve; stainless steel connection pumps are equipped with a wafer disc-style check valve.

  • Pump hydraulics are driven by stainless steel, 7/16" hex shaft with a rigid top bearing and splined motor coupling for maximum power distribution efficiency.

  • 100% factory performance tested Powered by Franklin Electric corrosion-resistant super stainless 4-inch submersible motors with lightning protection.

  • The maximum water temperature with the proper flow is 120 °F/49 °C. Consult the factory for details..

  • NSF/ANSI 61 Certified.
