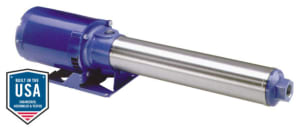

Goulds 18GBC30 GB Series Centrifugal Booster Pump, 1 in NPT Inlet 1 in NPT Outlet, 3 hp, 115 to 230 VAC, 1 Phase, Cast Iron, 3500 rpm Motor
Part #1263
MFG #18GBC30
Goulds 18GBC30 GB Series Centrifugal Booster Pump, 1 in NPT Inlet 1 in NPT Outlet, 3 hp, 115 to 230 VAC, 1 Phase, Cast Iron, 3500 rpm Motor
Part #1263
MFG #18GBC30
Sign In to See Your Price
Goulds 18GBC30 GB Series Centrifugal Booster Pump, 1 in NPT Inlet 1 in NPT Outlet, 3 hp, 115 to 230 VAC, 1 Phase, Cast Iron, 3500 rpm Motor
Part #1263
MFG #18GBC30
- Item Features
- Attributes
- Documents
Item Features
- Provides steady, quiet, vibration free, operation multi-stage design.
- Reliable high pressure O-ring casing sealing with easy disassembly for maintenance or repair.
- Glass filled engineered composite material with floating impeller and diffuser design.
- High resistance to corrosion and abrasion.
- 300 stainless steel rabbit lock bowls for positive alignment with no gasket required.
- Centrifugal pump design permits selection of flow within a range for each size variable capacity.
- A variety of face materials and elastomer to match application needs mechanical seal.
- Close coupled NEMA 56J motors in open drip proof design.
- Ball bearing carry all radial and axial thrust load.
- Designed for continuous operation.
Attributes
Bearing TypeBall
Enclosure TypeOpen Drip-Proof
Flow Rate18 gpm
Frequency Rating60 Hz
Impeller TypeEngineered Composite
Inlet Size1 in NPT
MaterialCast iron
Maximum Head470 ft
Maximum Pressure75 psi
Maximum Suction Lift1 in
Motor Speed3500 rpm
Mounting TypeWall
Outlet Size1 in NPT
Phase1
Power Rating3 hp
SeriesGB Series
Temperature Rating160 deg F
Voltage Rating115 to 230 VAC
