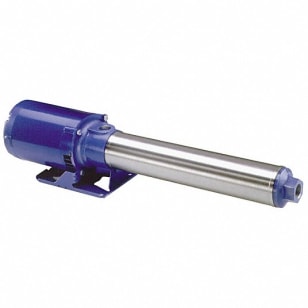

Goulds 5GBC07 GB Series Centrifugal Booster Pump, 1 in NPT Inlet 1 in NPT Outlet, 3/4 hp, 115 to 230 VAC, 1 Phase, Cast Iron, 3500 rpm Motor
Part #1253
MFG #5GBC07
Goulds 5GBC07 GB Series Centrifugal Booster Pump, 1 in NPT Inlet 1 in NPT Outlet, 3/4 hp, 115 to 230 VAC, 1 Phase, Cast Iron, 3500 rpm Motor
Part #1253
MFG #5GBC07
Sign In to See Your Price
Goulds 5GBC07 GB Series Centrifugal Booster Pump, 1 in NPT Inlet 1 in NPT Outlet, 3/4 hp, 115 to 230 VAC, 1 Phase, Cast Iron, 3500 rpm Motor
Part #1253
MFG #5GBC07
- Item Features
- Attributes
- Documents
Item Features
- Multi-stage design - Provides steady, quiet, vibration free, operation.
- O-ring casing seal - Reliable high pressure sealing with easy disassembly for maintenance or repair.
- Impellers and diffusers - Glass filled engineered composite material with a fixed impeller design, high resistance to corrosion and abrasion.
- Bowls - 300 stainless steel rabbit lock for positive alignment with no gaskets required.
- Variable capacity - Centrifugal pump design permits selection of flow within a range for each size.
- Mechanical seal - A variety of face materials and elastomers to match application needs.
- Motors - Close coupled NEMA 56J motors in open drip proof or totally enclosed design.
- Ball bearing carry all radial and axial thrust load.
- Designed for continuous operation.
Attributes
Bearing TypeBall
Enclosure TypeOpen Drip-Proof
Flow Rate5 gpm
Frequency Rating60 Hz
Impeller TypeGlass Filled Engineered Composite
Inlet Size1 in NPT
MaterialCast iron
Maximum Head600 ft
Maximum Pressure75 psi
Maximum Suction Lift1 in
Motor Speed3500 rpm
Mounting TypeWall
Outlet Size1 in NPT
Phase1
Power Rating3/4 hp
SeriesGB Series
Temperature Rating160 deg F
Voltage Rating115 to 230 VAC
