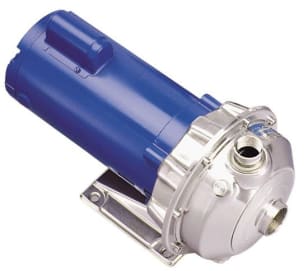

Goulds 1ST1G4B4 NPE Centrifugal Pump, 1-1/4 in NPT Inlet 1 in NPT Outlet, 2 hp, 115 to 230 V, 1 Phase, 316L Stainless Steel, 3500 rpm Motor

Part #143140

MFG #1ST1G4B4


Goulds 1ST1G4B4 NPE Centrifugal Pump, 1-1/4 in NPT Inlet 1 in NPT Outlet, 2 hp, 115 to 230 V, 1 Phase, 316L Stainless Steel, 3500 rpm Motor

Part #143140

MFG #1ST1G4B4

Sign In to See Your Price

Goulds 1ST1G4B4 NPE Centrifugal Pump, 1-1/4 in NPT Inlet 1 in NPT Outlet, 2 hp, 115 to 230 V, 1 Phase, 316L Stainless Steel, 3500 rpm Motor

Part #143140

MFG #1ST1G4B4

Item Features
  • High efficiency enclosed impeller with unique floating seal ring design maintains maximum efficiencies over the life of the pump without adjustment.

  • Complete AISI 316L stainless steel liquid handling components and mounting bracket for corrosion resistance, quality appearance and improved strength and ductility.

  • NEMA standard open drip-proof, totally enclosed fan cooled or explosion proof enclosures and rugged ball bearing design for continuous duty under all operating conditions.

  • Stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs casing and adapter features.

  • Rotation when viewed from suction end of pump, standard discharge position is 12 o-clock.

  • Pre-engineered carbon rotary, silicon carbide stationary, FKM elastomer, 316 stainless steel metal parts, 10K55 5/8 in john crane type 21 mechanical seal.

  • 5-3/4 in Dia impeller.
