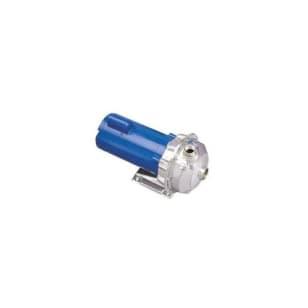

Goulds 2ST1G1F4-M01 NPE Centrifugal Pump, 1-1/2 in Inlet x 1-1/4 in Outlet, 115, 230 V, 1 pH Phase, Stainless Steel, 3500 rpm Motor, Blue/Silver

Part #1272

MFG #2ST1G1F4-M01


Goulds 2ST1G1F4-M01 NPE Centrifugal Pump, 1-1/2 in Inlet x 1-1/4 in Outlet, 115, 230 V, 1 pH Phase, Stainless Steel, 3500 rpm Motor, Blue/Silver

Part #1272

MFG #2ST1G1F4-M01

Sign In to See Your Price

Goulds 2ST1G1F4-M01 NPE Centrifugal Pump, 1-1/2 in Inlet x 1-1/4 in Outlet, 115, 230 V, 1 pH Phase, Stainless Steel, 3500 rpm Motor, Blue/Silver

Part #1272

MFG #2ST1G1F4-M01

Item Features
  • 2 HP Horsepower.

  • Close coupled/End suction Design.

  • 4-7/8 in Impeller Diameter.

  • Carbon/Sil-Carbide/Viton/316 Stainless Shaft Seal.

  • Clockwise Rotation Viewed from Drive End Rotation.

  • Overload Protection.

  • The close coupled compact, flexible design saves space, can be mounted horizontally or vertically, and simplifies maintenance.

  • Standard NEMA motors have stainless steel shaft and rugged ball bearing design for continuous duty under all conditions.

  • Superior, complete AISI 316L stainless steel liquid handling components and mounting bracket for corrosion resistance, quality appearance, and improved strength and durability.

  • Casing and adapter have NPT threaded centerline connections, easily accessible vent, prime and drain connections with stainless plugs.

  • Unique floating O-ring enclosed impeller design maintains maximum efficiencies.

  • High efficiency enclosed impeller with unique floating seal ring design maintains maximum efficiencies over the life of the pump without adjustment.

  • Casing and adapter features stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs. Optional seal face vent/flush available..

  • Standard John Crane Type 21 with carbon versus silicon-carbide faces, Viton elastomers, and 316 stainless metal parts. Optional high temperature and chemical duty seals available..
