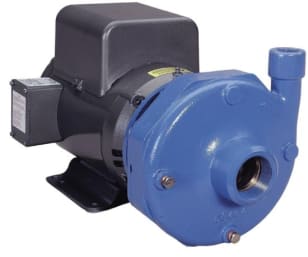

Goulds 3BF1H1A0H 3656 S-Group Centrifugal Pump, 2 in NPT Inlet 1-1/2 in NPT Outlet, 3 hp, 115 to 230 V, 1 Phase, 3500 rpm Motor
Part #1277
MFG #3BF1H1A0H
Goulds 3BF1H1A0H 3656 S-Group Centrifugal Pump, 2 in NPT Inlet 1-1/2 in NPT Outlet, 3 hp, 115 to 230 V, 1 Phase, 3500 rpm Motor
Part #1277
MFG #3BF1H1A0H
Sign In to See Your Price
Goulds 3BF1H1A0H 3656 S-Group Centrifugal Pump, 2 in NPT Inlet 1-1/2 in NPT Outlet, 3 hp, 115 to 230 V, 1 Phase, 3500 rpm Motor
Part #1277
MFG #3BF1H1A0H
- Item Features
- Attributes
- Documents
Item Features
- The model 3656 offers close coupled design for space saving and simplified maintenance
- Back pull-out to reduce maintenance down time
- Standard Type 21 mechanical seal for both reliability and availability. Carbon/ceramic/ BUNA standard, with other faces and elastomers available.
- Replaceable wearing components include stainless steel shaft sleeve and casing and hub wear rings to maintain peak efficiency
- Enclosed impeller design, dynamic balancing and renewable wear rings reduce losses affecting performance and pump life
- Rigid cast iron motor adapter provides support and registered fits maintain positive unit alignment
- Carbon/ceramic/BUNA standard, with other faces and elastomers available
- 5-15/16 in Dia impeller
Attributes
Series3656 S-Group
Flow Rate140 gpm
Inlet Size2 in NPT
Outlet Size1-1/2 in NPT
Maximum Head138 ft
Maximum Suction Lift2 in NPT
Power Rating3 hp
Voltage Rating115 to 230 V
Frequency Rating60 Hz
Phase1
Maximum Pressure175 psig
Motor Speed3500 rpm
Service Factor1.15
Impeller TypeSilicon Bronze Enclosed
Temperature Rating250 deg F
Enclosure TypeOpen Drip-Proof
Bearing TypeBall
MaterialBronze Fitted
