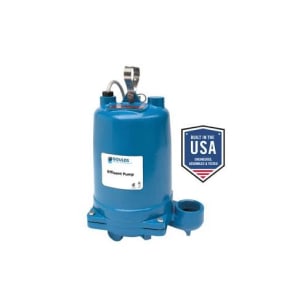

Goulds WE0712H 3885 WE Series Submersible Effluent Pump, 140 gpm Max Flow, Automatic, Up to 128 ft Max Head, 3/4 hp, 230 V, 1 Phase
Part #1218
MFG #WE0712H
Goulds WE0712H 3885 WE Series Submersible Effluent Pump, 140 gpm Max Flow, Automatic, Up to 128 ft Max Head, 3/4 hp, 230 V, 1 Phase
Part #1218
MFG #WE0712H
Sign In to See Your Price
Goulds WE0712H 3885 WE Series Submersible Effluent Pump, 140 gpm Max Flow, Automatic, Up to 128 ft Max Head, 3/4 hp, 230 V, 1 Phase
Part #1218
MFG #WE0712H
- Item Features
- Attributes
- Documents
Item Features
- Cast iron, semi-open, non-clog with pump-out vanes for mechanical seal protection
- Balanced for smooth operation
- Casing - cast iron volute type for maximum efficiency
- Mechanical seal - silicon carbide versus silicon carbide seal faces
- Stainless steel metal parts, Buna-N elastomers
- Threaded design
- Shaft - corrosion resistant, stainless steel
- Locknut on all models to guard against component damage on accidental reverse rotation
- Designed for continuous operation when fully submerged
- Capable of running dry without damage to components
Attributes
SeriesWE Series
Maximum Flow Rate140 gpm
Outlet Size2 in NPT
Maximum HeadUp to 128 ft
Horsepower3/4 hp
Voltage Rating230 V
Amperage Rating1899-12-30
Frequency Rating60 Hz
Phase1
Motor Speed3450 rpm
Cord TypeSJTOW/STOW 14/3 AWG
Impeller TypeCast Iron Non-Clogging Semi-Open
Temperature Rating104 deg F
Bearing TypeHeavy Duty Ball
MaterialCast iron
Dimensions11-1/2 in L x 8-1/2 in W x 16 in H
