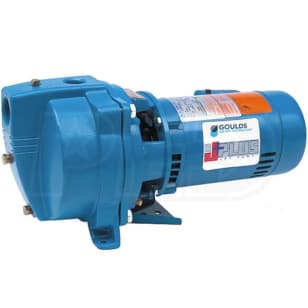

Goulds J5SH JS+ Shallow Well Jet Pump, 2.8 at 25 ft gpm Flow Rate, 1-1/4 in NPT Inlet 1 in NPT Outlet, 1, 0.5 hp, Cast Iron, Domestic
Part #1170
MFG #J5SH
Goulds J5SH JS+ Shallow Well Jet Pump, 2.8 at 25 ft gpm Flow Rate, 1-1/4 in NPT Inlet 1 in NPT Outlet, 1, 0.5 hp, Cast Iron, Domestic
Part #1170
MFG #J5SH
Sign In to See Your Price
Goulds J5SH JS+ Shallow Well Jet Pump, 2.8 at 25 ft gpm Flow Rate, 1-1/4 in NPT Inlet 1 in NPT Outlet, 1, 0.5 hp, Cast Iron, Domestic
Part #1170
MFG #J5SH
- Item Features
- Attributes
- Documents
Item Features
- Shallow well adapter built-in.
- Back pull-out design.
- Two compartment motor for easy access to wiring.
- Corrosion Resistant.
- Protected mechanical seal.
- FDA compliant Impeller.
- Built-in overload with automatic reset.
- Stainless steel shaft.
- Clockwise rotation when viewed from motor end.
- AS4 30 to 50 psi pressure switch.
Attributes
SeriesJS+
Flow Rate2.8 at 25 ft gpm
Inlet Size1-1/4 in NPT
Outlet Size1 in NPT
Maximum Suction Lift5, 10, 15, 20, 25 ft
Horsepower0.5 hp
Voltage Rating115 to 230 V
Frequency Rating60 Hz
Phase1
Maximum Pressure60 psi
Motor Speed3500 rpm
Impeller TypeNoryl
Temperature Rating140 deg F
MaterialCast iron
Dimensions17-1/4 in L x 9-7/8 in W x 8-3/4 in H
