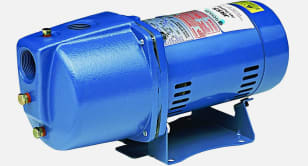

Goulds JRS5 JRS Shallow Well Jet Pump, 27 gpm, 1-1/4 in NPT Inlet 1 in NPT Outlet, 1, 1/2 hp
Part #1163
MFG #JRS5
Goulds JRS5 JRS Shallow Well Jet Pump, 27 gpm, 1-1/4 in NPT Inlet 1 in NPT Outlet, 1, 1/2 hp
Part #1163
MFG #JRS5
Sign In to See Your Price
Goulds JRS5 JRS Shallow Well Jet Pump, 27 gpm, 1-1/4 in NPT Inlet 1 in NPT Outlet, 1, 1/2 hp
Part #1163
MFG #JRS5
- Item Features
- Attributes
- Documents
Item Features
- Design has an integral shallow well jet built-into the casing, which eliminates the need for a separate shallow well adapter
- Back pull-out design allows disassembly of pump for service without disturbing piping
- Two compartment motor for easy access to motor wiring and replaceable components
- Nozzle clean out plug in pump case
- Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning
- Premium O-ring design fittings need only be hand tight to seal
- O-ring casing seal
- For ease of winterizing and maintenance
- Engineered composite
- Corrosion and abrasion resistant
Attributes
SeriesJRS
Flow Rate27 gpm
Inlet Size1-1/4 in NPT
Outlet Size1 in NPT
Maximum Suction Lift5, 10, 15, 20, 25 ft
Horsepower0.5 hp
Voltage Rating115 to 230 V
Frequency Rating60 Hz
Phase1
Maximum Pressure50 psi
Motor Speed3500 rpm
Temperature Rating140 deg F
