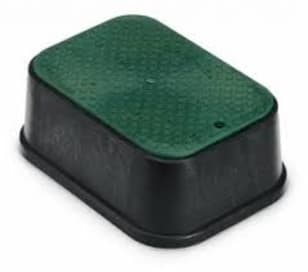

Rain Bird A11434 VB-JMB Valve Box with Lid, 12.1 in H, Plastic, Black/Green

Part #141486

MFG #A11434


Rain Bird A11434 VB-JMB Valve Box with Lid, 12.1 in H, Plastic, Black/Green

Part #141486

MFG #A11434

Sign In to See Your Price

Rain Bird A11434 VB-JMB Valve Box with Lid, 12.1 in H, Plastic, Black/Green

Part #141486

MFG #A11434

Item Features
  • Easily removable knock-outs simplify pipe placement and reduce installation time. Two large center knock-outs accommodate up to 3.5 in diameter pipe. (Extensions do not have knock-outs.).

  • Knock-out retainers hold removed knock-outs in place above the pipe to help keep dirt out during backfill..

  • Corrugated sides provide strength both before and after knock-outs are removed.

  • Shovel access slot on body allows for easy lid removal..

  • Beveled lid edges help prevent damage to lids from lawn equipment..

  • Bolt hole knock-out in the lid keeps insects out of the box when bolt is not used..

  • Interlocking bottoms allow boxes to mate securely together bottom-to-bottom for deep installations.

  • Optional stainless steel bolt and clip securely fasten the lid to the body.

  • Lid marking area provides dedicated location for valve identification..

  • 18.7 in x 12.2 in (47.4 cm x 30.9 cm) Minimum Top Opening.

  • 22.3 in x 15.8 in (56.7 cm x 40.2 cm) Maximum Top.

  • 24.0 in x 17.5 in (61.1 cm x 44.2 cm) Minimum Bottom Opening.

  • 27.6 in x 21.0 in (70.1 cm x 53.3 cm) Maximum Bottom.
