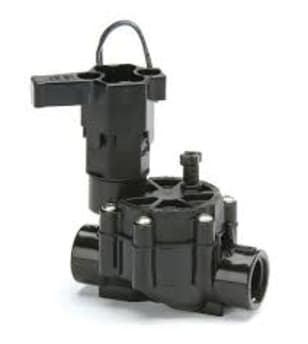

Rain Bird 75DV DV Series Residential Irrigation Valve, NPT Connection, 15 to 150 psi Pressure, Plastic, Black

Part #141433

MFG #75DV


Rain Bird 75DV DV Series Residential Irrigation Valve, NPT Connection, 15 to 150 psi Pressure, Plastic, Black

Part #141433

MFG #75DV

Sign In to See Your Price

Rain Bird 75DV DV Series Residential Irrigation Valve, NPT Connection, 15 to 150 psi Pressure, Plastic, Black

Part #141433

MFG #75DV

Item Features
  • 3/4 in. (20/27) standard in-line configuration.

  • Double-filtered pilot-flow design for maximum reliability.

  • Balanced-pressure diaphragm for long life.

  • External bleed to manually flush system of dirt and debris during installation and system start-up.

  • Internal bleed for spray-free manual operation.

  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter.

  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring..

  • Operates in low-flow and Xerigation applications when the RBY filter is installed upstream..

  • 1.25 in. (3,2 cm) stainless steel phillips head screws..

  • Accepts latching solenoid for use with Rain Bird battery-operated controllers..

  • 38 Ohms Solenoid coil resistance.

  • Up to 110 deg F (43 deg C) Operating Temperature.
