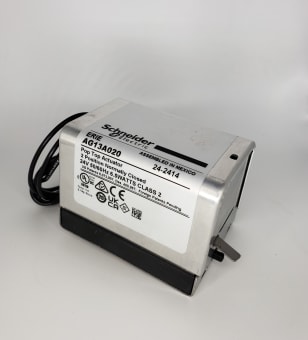

Robertshaw AG13A020 Two-Position Zone Valves
Part #5228
MFG #AG13A020
Robertshaw AG13A020 Two-Position Zone Valves
Part #5228
MFG #AG13A020
Sign In to See Your Price
Robertshaw AG13A020 Two-Position Zone Valves
Part #5228
MFG #AG13A020
- Item Features
- Attributes
- Documents
Item Features
- One-handed engagement or removal of the motorized actuator to the valve body.
- Valve actuator can be easily attached after the valve body has been installed into the system.
- Mounts quickly and easily without the need of linkages or calibration.
- Available in 2-way and 3-way port configurations.
- Available factory coupled, or as individual bodies and actuators.
- Direct replacement for all existing PopTop applications.
- Rugged 300 PSG rated brass forged body design for long life.
- 32 deg F to 200 deg F (Fluid) @ 104 deg F (Ambient) (0 deg C to 93 deg C @ 40 deg C) Temperature Range.
- 24V AC, 50/60 Hz Electrical Rating.
- 18 in Lead Wire.
Attributes
TypeZone Valves
