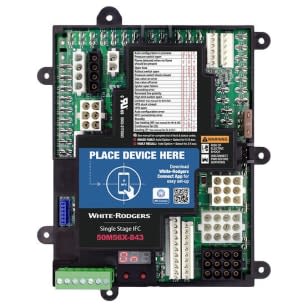

White-Rodgers 50M56X-843 Integrated Furnace Controls, 25 VAC

Part #175658

MFG #50M56X-843


White-Rodgers 50M56X-843 Integrated Furnace Controls, 25 VAC

Part #175658

MFG #50M56X-843

Sign In to See Your Price

White-Rodgers 50M56X-843 Integrated Furnace Controls, 25 VAC

Part #175658

MFG #50M56X-843

Item Features
  • 60 Hz Frequency.

  • 14.5 FLA-25.0 LRA @ 120 Vac Circulator Relay.

  • -40 to 175 deg. F (-40 to 79 deg. C) Operating Temperature Range.

  • 5% to 93% relative humidity (non-condensing) Operating Humidity.

  • Configurable for either PSC or ECMx blower motors.

  • Reduce inventory by replacing over 550 part numbers.

  • Quick configuration (without power) and diagnostics with the White-Rodgers Connect App.

  • OEM harness detection, no additional harnesses required.

  • 120V Nitride ignitor included.

  • 7-Segment LED display provides unlimited configuration options.

  • Rollout accessory is not required.

  • Thermostat connector block for simple wiring.
