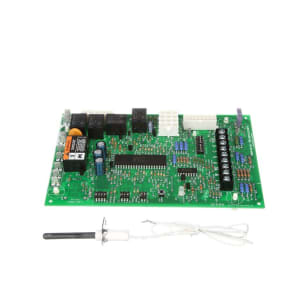

White-Rodgers 21V51U-843 Universal Two Stage Furnace Control, 24 VAC, 14.5 A

Part #175448

MFG #21V51U-843


White-Rodgers 21V51U-843 Universal Two Stage Furnace Control, 24 VAC, 14.5 A

Part #175448

MFG #21V51U-843

Sign In to See Your Price

White-Rodgers 21V51U-843 Universal Two Stage Furnace Control, 24 VAC, 14.5 A

Part #175448

MFG #21V51U-843

Item Features
  • 16-pin variable speed circulator output for ECM.

  • Dipswitch selectable for OEM applications two-speed inducer output, two stage gas valve output.

  • Pushbutton fault history retrieval.

  • Furnace status LED - tri-color (green, red and amber).

  • Heat fan off delay (dipswitch selectable), fan on delay for cooling.

  • -40 to 175 deg F.

  • 2-stage gas valve output.

  • 3 A fuse protection.

  • Pressure switch inputs and monitoring.

  • Flash microprocessor with non-volatile memory.

  • Flame current measurement points.

  • 1.5 A valve relay.

  • 2.2 FLA to 3.5 LRA inducer relay.

  • 14.5 FLA to 25 LRA circulator relay.

  • 1 a max at 120 VAC humidity.

  • 1 a max at 120 VAC electronic air cleaning.

  • 4 a max at 132 VAC ignitor relay.

  • 0.3 uA DC max current for flame detection.

  • 0.1 uA DC min current for flame detection.

  • 100 M ohm leakage resistance, 3 speed PSC blower motor systems.
