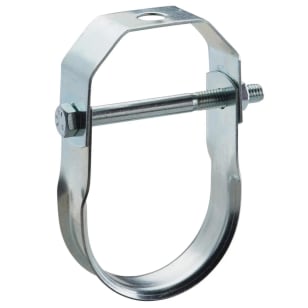

nVent CADDY 4100500EG 410 Clevis Hanger, 5 in Pipe, 5/8 in Rod, 600 lb LD, Steel, Electrogalvanized/Pregalvanized
Part #7597
MFG #4100500EG
nVent CADDY 4100500EG 410 Clevis Hanger, 5 in Pipe, 5/8 in Rod, 600 lb LD, Steel, Electrogalvanized/Pregalvanized
Part #7597
MFG #4100500EG
Sign In to See Your Price
nVent CADDY 4100500EG 410 Clevis Hanger, 5 in Pipe, 5/8 in Rod, 600 lb LD, Steel, Electrogalvanized/Pregalvanized
Part #7597
MFG #4100500EG
- Item Features
- Attributes
- Documents
Item Features
- Recommended for the suspension of stationary non-insulated pipe lines
- Also commonly used for the suspension of insulated pipe lines
- Flared edges help prevent sharp surfaces from coming into contact with the pipe (1/2 in to 8 in pipe sizes)
- Clevis bottom pivots to allow pipe to be fed from either direction
- Conforms with Federal Specification WW-H-171 (Type 12), Manufacturers Standardization Society (MSS) SP-58 (Type 1)
- Light Duty
Attributes
Dimensions9-1/16 in L x 5-9/16 in OD
FinishElectrogalvanized/Pregalvanized
Load Capacity600 lb
MaterialSteel
Pipe Size5 in
Rod Size5/8 in
Series410
