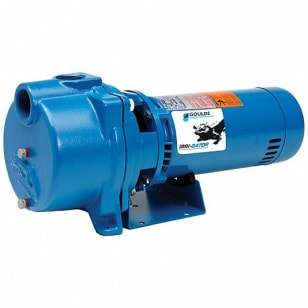

Goulds GT07 Self-Priming Centrifugal Pump, 110 gpm, 1-1/2 in NPT Inlet 1-1/2 in NPT Outlet, 3/4 hp, 115 to 230 VAC, 1 Phase, 5 ft Max Suction Lift
Part #1182
MFG #GT07
Goulds GT07 Self-Priming Centrifugal Pump, 110 gpm, 1-1/2 in NPT Inlet 1-1/2 in NPT Outlet, 3/4 hp, 115 to 230 VAC, 1 Phase, 5 ft Max Suction Lift
Part #1182
MFG #GT07
Sign In to See Your Price
Goulds GT07 Self-Priming Centrifugal Pump, 110 gpm, 1-1/2 in NPT Inlet 1-1/2 in NPT Outlet, 3/4 hp, 115 to 230 VAC, 1 Phase, 5 ft Max Suction Lift
Part #1182
MFG #GT07
- Item Features
- Attributes
- Documents
Item Features
- Fully Serviceable
- Strong and Durable cast iron casing design
- Electro-Coat paint process for corrosion resistance
- Excellent corrosion and abrasion resistance materials
- Powered for continuous operation
Attributes
Frequency60 Hz
Voltage115 to 230 VAC
Flow Rate110 gpm
Inlet Size1-1/2 in NPT
Outlet Size1-1/2 in NPT
Maximum Head128 ft
Maximum Suction Lift5 ft
Power Rating0.75 hp
Phase1 ph
Maximum Pressure125 psig
Motor Speed3500 rpm
Impeller TypeGlass Filled/Abrasion Resistant Noryl
Temperature Rating140 deg F
Enclosure TypeOpen Drip-Proof
MaterialCast iron
Dimensions19-3/16 in L x 8.25 in W x 9.25 in H
