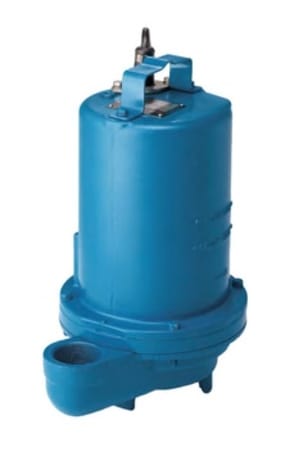

Barnes 105045 STEP-SS Submersible Effluent Pump, 130 gpm Max Flow, 120 V, 1 Phase
Part #818
MFG #105045
Barnes 105045 STEP-SS Submersible Effluent Pump, 130 gpm Max Flow, 120 V, 1 Phase
Part #818
MFG #105045
Sign In to See Your Price
Barnes 105045 STEP-SS Submersible Effluent Pump, 130 gpm Max Flow, 120 V, 1 Phase
Part #818
MFG #105045
- Attributes
- Item Features
Attributes
TypeEffluent Pump
SeriesSTEP-SS
Maximum Flow Rate130 gpm
Horsepower0.5 hp
Voltage Rating120 V
Frequency Rating60 Hz
Phase1 ph
Motor Speed3450 rpm
Cord TypeSJTOW
Temperature Rating104 deg F
Bearing TypeUpper and Lower
MaterialCast iron
ColorBlue
Dimensions12.16 L x 9.25 W x 16.76 H in
Item Features
- It is available in a single or double seal design.
- It features cast iron construction and a stainless steel shaft.
- H NEMA Start Code.
- 11.9 full load Amps.
- 24.6 Locked Rotor Amps.
- 14/3 Cord Size.
- 0.375 in cord outside diameter.
- 20 ft Cord Length.
