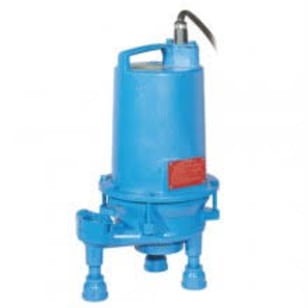

Barnes 115658 SGV Manual Grinder Pump, 110 gpm Max Flow, 150 ft Max Head, 240 V, 1 Phase
Part #143163
MFG #115658
Barnes 115658 SGV Manual Grinder Pump, 110 gpm Max Flow, 150 ft Max Head, 240 V, 1 Phase
Part #143163
MFG #115658
Sign In to See Your Price
Barnes 115658 SGV Manual Grinder Pump, 110 gpm Max Flow, 150 ft Max Head, 240 V, 1 Phase
Part #143163
MFG #115658
- Item Features
- Attributes
Item Features
- It features cast iron construction and a stainless steel Hardware
- Recessed vortex impeller design virtually eliminates pump damage from cavitation
- Unique and robust 3-bearing shaft support design significantly extends mechanical seal life by minimizing shaft deflection
- Cast iron impeller will not corrode
- Exclusive Slicerator grinder eliminates jams
- Quick-connect power cord eliminates wiring mistakes
- Available from factory with pre-wired and tested basin package
- Available in 2 hp, 3 hp, 5 hp, and 7.5 hp models
- Double mechanical seal provides clean environment for long life
- H NEMA Start Code
Attributes
Frequency60 Hz
Voltage240 V
TypeRazor Grinder Pump
SeriesSGV
Maximum Flow Rate110 gpm
Maximum Head150 ft
Horsepower5 hp
Phase1 ph
Motor Speed3450 rpm
Cord TypeSOW
Impeller TypeVortex
Temperature Rating104 deg F
MaterialCast iron
ColorBlue
