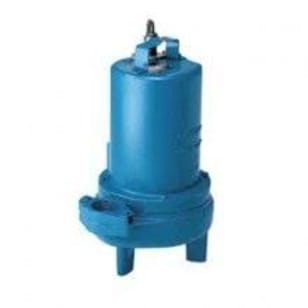

Barnes 104885 SE-L Submersible Sewage Pump, 3/4 hp, 200/240 V, Cast Iron, 4.8/4.5 A, 3 Phase
Part #134205
MFG #104885
Barnes 104885 SE-L Submersible Sewage Pump, 3/4 hp, 200/240 V, Cast Iron, 4.8/4.5 A, 3 Phase
Part #134205
MFG #104885
Sign In to See Your Price
Barnes 104885 SE-L Submersible Sewage Pump, 3/4 hp, 200/240 V, Cast Iron, 4.8/4.5 A, 3 Phase
Part #134205
MFG #104885
- Item Features
- Attributes
Item Features
- 2" NPT, female, vertical, bolt-on flanged discharge
- Volute, motor housing, impeller and seal plate are cast iron
- Impeller has a 2 vane open design with pump out vanes on back side
- 416 stainless steel shaft
- Buna-N square rings
- 300 series stainless steel hardware
- Single mechanical seal design made of Carbon/Ceramic/Buna-N
- Single row, oil lubricated upper and lower ball bearings
Attributes
Voltage200/240 V
TypeSewage Pump
SeriesSE-L
Flow Rate185 gpm
Maximum Head30 ft
Horsepower3/4 hp
Amperage Rating4.8/4.5 A
Phase3 ph
Motor Speed1750 rpm
Cord TypeSOW
Impeller Type2-Vane
Temperature Rating104 deg F
MaterialCast iron
