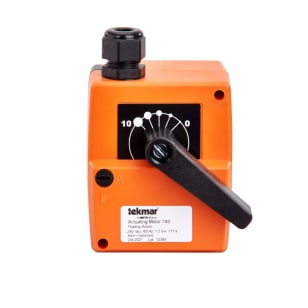

Tekmar 743 Motor Mixing Valves, For Use With Control having a 24 V (ac) floating output., Brass, Orange
Part #8219
MFG #743
Tekmar 743 Motor Mixing Valves, For Use With Control having a 24 V (ac) floating output., Brass, Orange
Part #8219
MFG #743
Sign In to See Your Price
Tekmar 743 Motor Mixing Valves, For Use With Control having a 24 V (ac) floating output., Brass, Orange
Part #8219
MFG #743
- Attributes
- Item Features
- Documents
Attributes
TypeMixing Valves
ColorOrange
MaterialBrass
Suitable For Use WithControl having a 24 V (ac) floating output.
Item Features
- 117 second open or close time at 60 Hz.
- Electrically limited to 90 degrees shaft rotation.
- 10 N.m (88 in.lbs) of torque.
- It is compatible with any control having a 24 V (ac) floating output.
- Designed to operate all tekmar brass mixing valves.
- Indoor use only, 32 to 122 degree F (0 to 50 degree C), RH less than 95% non-condensing Ambient Conditions.
- 24 V (ac), floating action Control Signal.
- 10 N-m (88 in-lbs) Maximum Torque.
- 24 V (ac) plus / minus 10 percent, 60 Hz, 1.5VA Power Supply.
- Electrically limited to 90 degree shaft rotation Angle.
- 117 seconds at 60 Hz Run Time.
