Hydronic Circulating Pumps

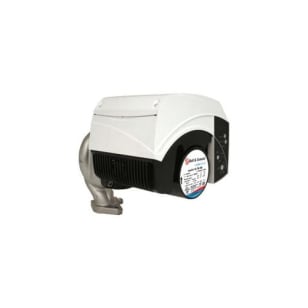

Bell & Gossett 104301 ecocirc XL36-45 Wet Rotor Circulator, 45 gpm Flow Rate, 115 VAC, 1 Phase
Part #
12947
MFG #
104301
Email
Print
Copy Link
Bell & Gossett 104301 ecocirc XL36-45 Wet Rotor Circulator, 45 gpm Flow Rate, 115 VAC, 1 Phase
Part #
12947
MFG #
104301
Sign In to See Your Price
Sign In to Build Cart
Add to List
Bell & Gossett 104301 ecocirc XL36-45 Wet Rotor Circulator, 45 gpm Flow Rate, 115 VAC, 1 Phase
Part #
12947
MFG #
104301
Item Features
Attributes
Documents
Item Features
Economical operation.
Efficient ECM motor.
Optimized hydraulics.
Low operational costs.
Electronics separated from the pump to prevent condensation.
Worry free operation even at 14 deg F.
User-friendly interface.
Four logically placed buttons.
Intuitive interface.
Easy to set and operate.
Built-in dry-run protection.
Stops pump if no water.
Prevent damage/repairs.
High visibility.
Clear display.
Large figures and symbols.
Easy to view pump status.
Multiple inputs.
Start-stop temp control.
Model number: ecocirc XL 36-45.
Attributes
Amperage Rating
0.1 to 3 A
Bearing Type
Sleeve
Dimensions
7.2 in L x 9.94 in W x 6.38 in H
Enclosure Type
Class 2 IP44/NEMA Type 2
Flow Rate
45 gpm
Frequency Rating
50/60 Hz
Impeller Type
Poly-Phenylene Sulfide/Stainless Steel
Maximum Head
36 ft
Maximum Pressure
175 psi
Phase
1 ph
Power Rating
1/6 hp
Series
ecocirc XL
Temperature Rating
230 deg F
Voltage Rating
115 VAC
Documents
12947_1287_Bell_Gossett_104301_Instruction_Installation_Manual.pdf
12947_1287_Bell_Gossett_104301_Specification_Sheet.pdf
