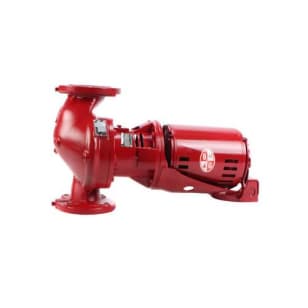

Bell & Gossett 105101 PD-37 Booster Pump, 135 gpm, 3/4 hp, 208 to 230/460 VAC, 3 Phase
Part #143047
MFG #105101
Bell & Gossett 105101 PD-37 Booster Pump, 135 gpm, 3/4 hp, 208 to 230/460 VAC, 3 Phase
Part #143047
MFG #105101
Sign In to See Your Price
Bell & Gossett 105101 PD-37 Booster Pump, 135 gpm, 3/4 hp, 208 to 230/460 VAC, 3 Phase
Part #143047
MFG #105101
- Item Features
- Attributes
- Documents
Item Features
- Oil lubricated circulator+BZ:BQ:CD
- Cast iron body
- Sleeve bearing, oil lubricated with replaceable resilient motor mounts
- Noise dampening coupler
- Bell & Gossetts own flexible spring design adds to quiet operation, do not accept a substitute
- Long bronze sleeve bearings maintain exact shaft alignment
- Provides for constant circulation of oil over bearing surfaces
- Precision ground pump shaft is oversized to provide large bearing surfaces
- Hardened integral thrust collar minimizes end-thrust to ensure long seal and bearing life
- The Bell & Gossett mechanical seal is designed to withstand the wide range of water temperatures, pressures, additives and dissolved solids common in hydronic systems
Attributes
Amperage Rating2.45 to 2.4/1.2 A
Bearing TypeSleeve
Dimensions20-1/4 in L x 12 in H
Flow Rate135 gpm
Frequency60 Hz
Impeller TypeCentrifugal
Maximum Head30 ft
Maximum Pressure125 psi
Motor Speed1750 rpm
Phase3 ph
Power Rating3/4 hp
SeriesPD Series
Temperature Rating225 deg F
Voltage208 to 230/460 VAC
Documents
