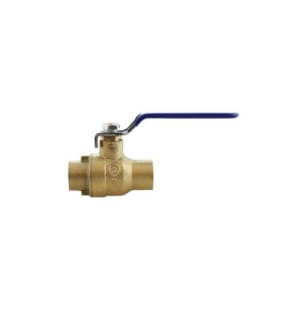

Boshart Industries 0827C-25NL CXC Full Port Ball Valve, 2-1/2 in Nominal, 400 psi Pressure, C End Style, Forged Brass Body, Full Port
Part #3908
MFG #0827C-25NL
Boshart Industries 0827C-25NL CXC Full Port Ball Valve, 2-1/2 in Nominal, 400 psi Pressure, C End Style, Forged Brass Body, Full Port
Part #3908
MFG #0827C-25NL
Sign In to See Your Price
Boshart Industries 0827C-25NL CXC Full Port Ball Valve, 2-1/2 in Nominal, 400 psi Pressure, C End Style, Forged Brass Body, Full Port
Part #3908
MFG #0827C-25NL
- Item Features
- Attributes
- Documents
Item Features
- CWP - cold working pressure, is an indication of the pressure rating for valves at a temperature range of up to +100 deg F (37 deg C).
- Blow-out proof stem.
- Zinc plated steel handle with yellow plastic sleeve.
- No lead <0.25% pb by weighted average.
- Plastic sleeve/PTFE seat/stainless steel stem.
- PTFE packing/FKM rubber O-ring.
Attributes
Material[
"PTFE",
"Forged Brass"
]
Size2-1/2 in
Series0827CNL
End StyleC
Pressure Rating400 psi
Temperature RatingUp to 300 deg F
Port TypeFull
Orifice Size2.56 in
Actuator TypeRubber Grip Handle
Ball MaterialStainless steel
Dimensions10.96 in L x 6.38 in W x 4.25 in H
