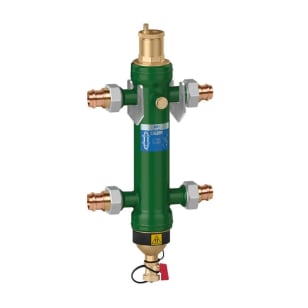

Caleffi 549597A 4-in-1 Hydraulic Separator, 1-1/4 in Nominal, Sweat Union Connection, 150 psi Working, 32 to 212 deg F, Steel
Part #135087
MFG #549597A
Caleffi 549597A 4-in-1 Hydraulic Separator, 1-1/4 in Nominal, Sweat Union Connection, 150 psi Working, 32 to 212 deg F, Steel
Part #135087
MFG #549597A
Sign In to See Your Price
Caleffi 549597A 4-in-1 Hydraulic Separator, 1-1/4 in Nominal, Sweat Union Connection, 150 psi Working, 32 to 212 deg F, Steel
Part #135087
MFG #549597A
- Item Features
- Attributes
- Documents
Item Features
- Combination air, dirt, hydraulic and magnetic separator.
- HDPE internal coalescing element, removable for cleaning.
- Closed cell expanded PE-X insulation material.
- Epoxy resin coated steel body.
- 4-in-1 Hydraulic Separators (Union).
- Mounting bracket.
- Thermowell tap 1/2 in straight female.
- Drain valve.
Attributes
Size1-1/4 in
Series5495
Connection TypeSweat Union
Working Pressure150 psi
Temperature Rating32 to 212 deg F
Flow Rate18 gpm
Insulation MaterialPE-X
MaterialSteel
Dimensions9-3/4 in W
