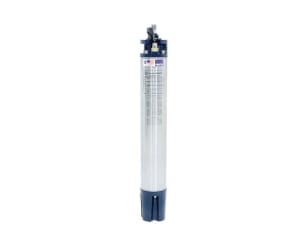

Franklin Electric 2261108020 Submersible Motor, 6 in Shaft, IP68 Enclosure, 5 hp, 230 VAC, 60 Hz, Single Phase, 3450 rpm Speed
Part #135899
MFG #2261108020
Franklin Electric 2261108020 Submersible Motor, 6 in Shaft, IP68 Enclosure, 5 hp, 230 VAC, 60 Hz, Single Phase, 3450 rpm Speed
Part #135899
MFG #2261108020
Sign In to See Your Price
Franklin Electric 2261108020 Submersible Motor, 6 in Shaft, IP68 Enclosure, 5 hp, 230 VAC, 60 Hz, Single Phase, 3450 rpm Speed
Part #135899
MFG #2261108020
- Item Features
- Attributes
Item Features
- Full 3450 RPM design point.
- Maximum temperature winding wire NEMA class 200.
- Anti-track, self-healing resin system.
- Hermetically-sealed windings.
- Removable Water-Bloc lead.
- Double-flange design.
- Over-molded lead for cable resilience.
- Stainless steel shell.
- Kingsbury-type water lubricated thrust bearing.
- Pressure-equalizing diapragm.
- Sand slinger.
- 3-lead and 6-lead (Wye Delta) configurations for 3-phase.
- Copper bar rotor.
Attributes
Amperage Rating23 A
Bearing TypeKingsbury Thrust
Dimensions5.44 in Dia x 28.2 in L
Enclosure TypeIP68
Frequency Rating60 Hz
Horsepower5 hp
Insulation ClassF
Material300 Series Stainless Steel
PhaseSingle
RotationCCW Rotation Facing the Shaft
Service Factor1.15
Shaft Size6 in
Speed3450 rpm
Temperature Rating86 deg F
Voltage Rating230 VAC
