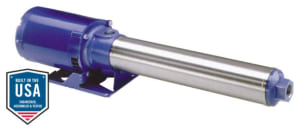

Goulds 10GBC10 GB Series Centrifugal Booster Pump, 1 in NPT Inlet 1 in NPT Outlet, 1 hp, 115 to 230 VAC, 1 Phase, Cast Iron, 3500 rpm Motor
Part #1259
MFG #10GBC10
Goulds 10GBC10 GB Series Centrifugal Booster Pump, 1 in NPT Inlet 1 in NPT Outlet, 1 hp, 115 to 230 VAC, 1 Phase, Cast Iron, 3500 rpm Motor
Part #1259
MFG #10GBC10
Sign In to See Your Price
Goulds 10GBC10 GB Series Centrifugal Booster Pump, 1 in NPT Inlet 1 in NPT Outlet, 1 hp, 115 to 230 VAC, 1 Phase, Cast Iron, 3500 rpm Motor
Part #1259
MFG #10GBC10
- Item Features
- Attributes
- Documents
Item Features
- Multi stage design - Provides steady, quiet, vibration free, operation.
- O-ring casing seal - Reliable high pressure sealing with easy disassembly for maintenance or repair.
- Impellers and diffusers - Glass filled engineered composite material with floating impeller design.
- Bowls - 300 stainless steel rabbit lock for positive alignment with no gaskets required.
- Variable capacity - Centrifugal pump design permits selection of flow within a range for each size.
- Mechanical seal - A variety of face materials and elastomers to match application needs.
- Motors - Close coupled NEMA 56J motors in open drip proof or totally enclosed design.
- Clockwise rotation when viewed from motor end.
Attributes
Bearing TypeBall
Enclosure TypeOpen Drip-Proof
Flow Rate10 GPM
Frequency Rating60 Hz
Impeller TypeEngineered Composite
Inlet Size1 in NPT
MaterialCast iron
Maximum Head560 ft
Maximum Pressure75 psi
Maximum Suction Lift1 in
Motor Speed3500 rpm
Mounting TypeWall
Outlet Size1 in NPT
Phase1
Power Rating1 hp
SeriesGB Series
Temperature Rating160 deg F
Voltage Rating115 to 230 VAC
