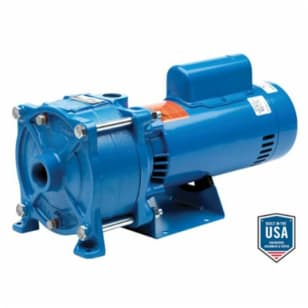

Goulds HSC20 HSC Multi-Stage Centrifugal Pump, 1-1/4 in Inlet 1 in Outlet, 2 hp, 230 VAC, 1 Phase, 3 Stage, Stainless Steel, 3500 rpm Motor
Part #1188
MFG #HSC20
Goulds HSC20 HSC Multi-Stage Centrifugal Pump, 1-1/4 in Inlet 1 in Outlet, 2 hp, 230 VAC, 1 Phase, 3 Stage, Stainless Steel, 3500 rpm Motor
Part #1188
MFG #HSC20
Sign In to See Your Price
Goulds HSC20 HSC Multi-Stage Centrifugal Pump, 1-1/4 in Inlet 1 in Outlet, 2 hp, 230 VAC, 1 Phase, 3 Stage, Stainless Steel, 3500 rpm Motor
Part #1188
MFG #HSC20
- Item Features
- Attributes
- Documents
Item Features
- Multi-stage design - Provides steady, quiet and vibration-free operation for years of trouble-free service
- Impellers - 20% glass-filled thermoplastic precision molded for high efficiencies
- Compact design - Close coupled, space saving design provides easy installation, flexible coupling and bedplate not required
- Mounting - Can be mounted in vertical or horizontal position
- Stainless steel pump shaft - Hex design provides positive drive for impellers and eliminates clearance adjustments
- Corrosion resistant - Stainless steel wear rings and cover plates, electro-coated paint process applied inside and out and then baked on
- O-rings - Throughout for positive sealing
- Easy to service - Can be taken apart for service by removing four bolts
- Motor - Close coupled design, ball bearings carry all radial/axial thrust loads
- Designed for continuous operation
Attributes
Bearing TypeBall
Dimensions19.7 in L x 8 in W x 9 in H
Enclosure TypeOpen Drip-Proof
Flow Rate50 GPM
Frequency60 Hz
Impeller TypeGlass-Filled Thermoplastic
Inlet Size1-1/4 in
MaterialStainless steel
Maximum Head218 ft
Maximum Pressure125 psi
Maximum Suction Lift1-1/4 in
Motor Speed3500 rpm
Mounting TypeHorizontal
Outlet Size1 in
Phase1
Power Rating2 hp
SeriesHSC
Temperature Rating180 deg F
Voltage230 VAC
