Sewage Pumps

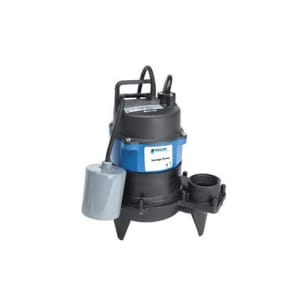

Goulds WW0511AC WW Series Submersible Sewage Pump, 0.5 hp, 115 V, 2 in NPT Outlet, Cast Iron, 15 A, 1
Part #
1236
MFG #
WW0511AC
Email
Print
Copy Link
Goulds WW0511AC WW Series Submersible Sewage Pump, 0.5 hp, 115 V, 2 in NPT Outlet, Cast Iron, 15 A, 1
Part #
1236
MFG #
WW0511AC
Sign In to See Your Price
Sign In to Build Cart
Add to List
Goulds WW0511AC WW Series Submersible Sewage Pump, 0.5 hp, 115 V, 2 in NPT Outlet, Cast Iron, 15 A, 1
Part #
1236
MFG #
WW0511AC
Item Features
Attributes
Documents
Item Features
Impeller is glass-filled thermoplastic full-vortex design with pump out vanes for mechanical seal protection.
Casing and base are rugged glass-filled thermoplastic design provides superior strength and corrosion resistance.
Cast iron motor housing for efficient heat transfer, strength and durability.
Thermoplastic motor cover with integral handle and float switch attachment points.
Upper and lower heavy duty ball bearing construction.
140 deg F intermittent temperature.
Attributes
Series
WW Series
Flow Rate
75 gpm
Outlet Size
2 in NPT
Maximum Head
18 ft
Horsepower
0.5 hp
Voltage Rating
115 V
Amperage Rating
15 A
Frequency Rating
60 Hz
Phase
1
Motor Speed
1550 rpm
Cord Type
SJTW
Impeller Type
Full-Vortex
Temperature Rating
104 deg F
Bearing Type
Heavy Duty Ball
Material
Cast iron
Dimensions
10-1/2 in L x 7-5/16 in W x 12-15/16 in H
Documents
1236_1287_Goulds_WW0511AC_Catalog.pdf
1236_1287_Goulds_WW0511AC_Instruction_Installation_Manual.pdf
