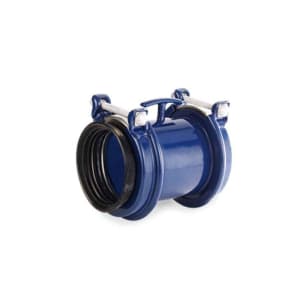

HYMAX 860-54-0163-16 Wide-Range Coupling, 6 in Nominal, Grade C Steel End Rings/Grade A Steel Center Ring/Stainless Steel Bridge, Spherical Spacers, Nut and Bolts

Part #138107

MFG #860-54-0163-16


HYMAX 860-54-0163-16 Wide-Range Coupling, 6 in Nominal, Grade C Steel End Rings/Grade A Steel Center Ring/Stainless Steel Bridge, Spherical Spacers, Nut and Bolts

Part #138107

MFG #860-54-0163-16

Sign In to See Your Price

HYMAX 860-54-0163-16 Wide-Range Coupling, 6 in Nominal, Grade C Steel End Rings/Grade A Steel Center Ring/Stainless Steel Bridge, Spherical Spacers, Nut and Bolts

Part #138107

MFG #860-54-0163-16

Item Features
  • Advanced Wide-Range Coupling with a Patented Flip Gasket.

  • Eliminates Gasket Removal Mistakes and Maximizes Installer Work Efficiency.

  • Only 2-4 Top Facing Bolts, For Faster and Safer Installation.

  • Ready-to-Use Design to Eliminate Extensive Preparatory Under-Pipe Digging.

  • Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage.

  • Patented Hydraulically-Assisted Gasket with 2-Stage Sealing.

  • Suitable for All Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP.

  • One Product Can Connect Pipes of Two Different Materials.

  • 6.42-7.68 Overall Range (inch).

  • 6.42-7.05 Range in closed gasket position (inch).

  • 7.01-7.68 Range in open gasket position (inch).

  • 2 -M14 Bolt Qty. and Size (mm).

  • 75 Torque (Ft-Lbs).

  • 23 Approx. Weight (Lbs).
