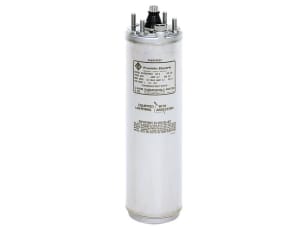

LittleGIANT 2247028802G Submersible Well Motors, 3 hp, 230 V, 60 Hz, 1 pH Phase

Part #135873

MFG #2247028802G


LittleGIANT 2247028802G Submersible Well Motors, 3 hp, 230 V, 60 Hz, 1 pH Phase

Part #135873

MFG #2247028802G

Sign In to See Your Price

LittleGIANT 2247028802G Submersible Well Motors, 3 hp, 230 V, 60 Hz, 1 pH Phase

Part #135873

MFG #2247028802G

Item Features
  • 1500 lb Thrust Rating.

  • Corrosion-Resistant Construction.

  • Hermetically-Sealed Windings.

  • Anti-Track Self-Healing Resin System.

  • Water Lubrication.

  • Filter Check Valve (Water Well).

  • Pressure Equalizing Diaphragm.

  • Built-in Lightning Arrestors (single-phase).

  • Removable Water-Bloc Lead installed in 60 Hz and dual frequency rated water well motors. Consult factory for additional leads.

  • NEMA Pump Mounting Dimensions.

  • 316 Stainless Steel: Special construction option for acid, low pH, and saline applications.

  • Oil Stripper: Special construction option for secondary oil recovery wells, geothermal, or other applications with high ambient temperatures. Consult factory for details.

  • Pollution Recovery: Motors equipped for use in monitoring and recovery wells in which hydrocarbons and other chemicals may be present. Special Viton? rubber parts and other chemical resistant materials as listed in Construction Materials chart.

  • CBM+: Increased bearing capacity. Kingsbury-type thrust bearing rated for 5-10 hp - 1,500 lbs. downthrust or 15 hp - 3,500 lbs. downthrust. Contains reinforced diaphragm housing and diaphragm filter shield.

  • World Wide Adaptability: All standard voltage and Hertz ratings are offered. Contact Franklin Electric for availability.
