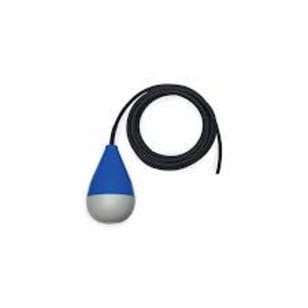

SJE-Rhombus® 1046501 Control Switch, 140 deg F

Part #141144

MFG #1046501


SJE-Rhombus® 1046501 Control Switch, 140 deg F

Part #141144

MFG #1046501

Sign In to See Your Price

SJE-Rhombus® 1046501 Control Switch, 140 deg F

Part #141144

MFG #1046501

Item Features
  • Mechanically-Activated, Internally Weighted Control Switch

  • The internal switching mechanism contains unique gold cross-point contacts, providing precision and reliable control signals up to 1 amp

  • Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal.

  • Normally Closed Models (low levels): The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level and turns off (opens) when the float tips slightly above horizontal.

  • 3 wire cable - SPDT (Single Pole, Double Throw) can be wired as normally open or normally closed. Wire color: Common (white), N.O. (black), N.C. (red)

  • Large twin wall tear drop shape design offers increased buoyancy

  • Two-color housing allows for easy identification of float position

  • Unique gold cross-point contacts provide precision and reliable control signals up to 1 amp

  • Excellent solution for applications with high grease content

  • Cable : flexible 18 gauge, 3 conductor (UL) SJOW, water-resistant (CPE)
