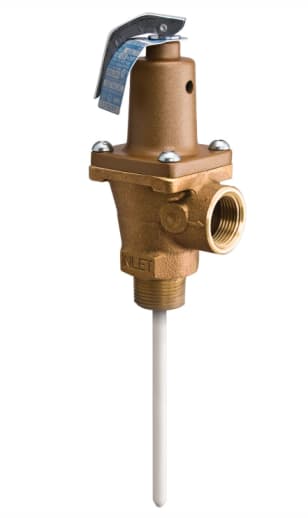

WATTS 0158776 Series 40XL Temperature & Pressure Relief Valve, 3/4 in Nominal, FNPT x MNPT End Style, 150 psi Pressure, 210 deg F, Bronze Body
Part #3712
MFG #0158776
WATTS 0158776 Series 40XL Temperature & Pressure Relief Valve, 3/4 in Nominal, FNPT x MNPT End Style, 150 psi Pressure, 210 deg F, Bronze Body
Part #3712
MFG #0158776
Sign In to See Your Price
WATTS 0158776 Series 40XL Temperature & Pressure Relief Valve, 3/4 in Nominal, FNPT x MNPT End Style, 150 psi Pressure, 210 deg F, Bronze Body
Part #3712
MFG #0158776
- Item Features
- Attributes
- Documents
Item Features
- Valve is used in commercial water heater applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters.
- Feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, tamper-resistant bonnet screws, automatic reseating feature, and test lever.
- 40XL has an extension thermostat for installation in the hot water outlet within the allowable distance from the top of the tank.
Attributes
MaterialBronze
Size3/4 in
SeriesSeries 40XL
End StyleFNPT x MNPT
Pressure Rating150 PSI
Temperature Rating210 deg F
Dimensions5-5/8 in H X 2-5/8 in W
