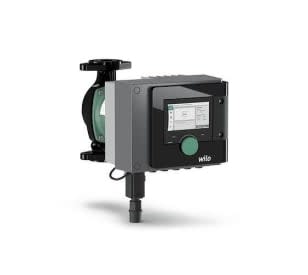

Wilo® 2164608 Circulator Pump, 280 gpm, 1-1/4 in Inlet x 3-1/4 in Outlet, 115/230 to 240 V, 1 Phase, Grey
Part #36038
MFG #2164608
Wilo® 2164608 Circulator Pump, 280 gpm, 1-1/4 in Inlet x 3-1/4 in Outlet, 115/230 to 240 V, 1 Phase, Grey
Part #36038
MFG #2164608
Sign In to See Your Price
Wilo® 2164608 Circulator Pump, 280 gpm, 1-1/4 in Inlet x 3-1/4 in Outlet, 115/230 to 240 V, 1 Phase, Grey
Part #36038
MFG #2164608
- Item Features
- Attributes
- Documents
Item Features
- EC motor technology reduces energy consumption by up to 80%
- Red Button technology and LED display
- 3 times higher starting torque than a standard circulator
- On-board diagnostics and data logger
- Multiple control modules available for integration with building management systems
- 1.25 in two-bold HV flange type
Attributes
Bearing TypeCarbon
ColorGrey
Flow Rate280 gpm
Inlet Size1.25 in
MaterialCast iron
Maximum Head25 ft
Maximum Pressure145 psi
Motor Speed3500 rpm
Outlet Size3.25 in
Phase1
Temperature Rating14 to 230 deg F
Voltage115/230 to 240 V
