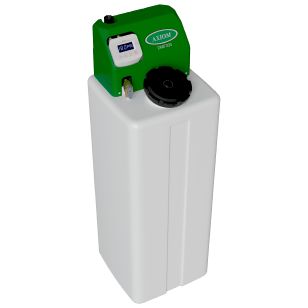

Axiom DMF300 Pressure Pal Hydronic System Feeder

Part #15384

MFG #DMF300


Axiom DMF300 Pressure Pal Hydronic System Feeder

Part #15384

MFG #DMF300

Sign In to See Your Price

Axiom DMF300 Pressure Pal Hydronic System Feeder

Part #15384

MFG #DMF300

Item Features
  • 1/2 in FNPT Connection.

  • 17 Gal Tank.

  • Factory cut-out pressure set to 18psig (115 kPa).

  • 0-45psig (0-310 kPa) pressure setpoint with adjustable dead band.

  • All features shown on user-friendly digital display screen.

  • Normally open or normally closed alert contacts and LED light for low-level, low-pressure, or high-pressure conditions.

  • Tilted front easy access.

  • Comes with wall mounting bracket.

  • Compatible with water & glycol (anti-freeze) mixes.

  • Perfect for stand-alone hydronic and radiant heating, snow melting and heating/cooling coils.

  • Plugs directly into a standard 115VAC outlet.

  • No direct connection to potable water supply eliminates need for backflow prevention.

  • Fuse-protected diaphragm pump can run dry without damage.

  • Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications.

  • Diverter valve allows easy purging of air on initial start-up and manual mixing of solution.

  • Prevents major floods - in the event of system rupture, only the contents of the tank will be pumped into the system.

  • Provides leak detection - dropping fluid level provides immediate notice that the system has developed a leak.

  • Fluid drained for service can easily be put back into the system.
