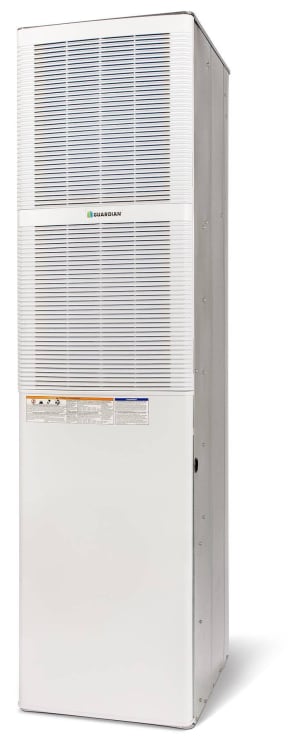

Comfort-Aire DGAX077BDTA DGAX Series 1-Stage Manufactured Housing Gas Furnace, Downflow, Natural Gas, 77000 Btu/hr Input, 62000 Btu/hr Output, 115 VAC, 80 % AFUE, 529 to 1441 cfm Flow Rate, Constant Torque ECM Blower Motor
Part #8331
MFG #DGAX077BDTA
Comfort-Aire DGAX077BDTA DGAX Series 1-Stage Manufactured Housing Gas Furnace, Downflow, Natural Gas, 77000 Btu/hr Input, 62000 Btu/hr Output, 115 VAC, 80 % AFUE, 529 to 1441 cfm Flow Rate, Constant Torque ECM Blower Motor
Part #8331
MFG #DGAX077BDTA
Sign In to See Your Price
Comfort-Aire DGAX077BDTA DGAX Series 1-Stage Manufactured Housing Gas Furnace, Downflow, Natural Gas, 77000 Btu/hr Input, 62000 Btu/hr Output, 115 VAC, 80 % AFUE, 529 to 1441 cfm Flow Rate, Constant Torque ECM Blower Motor
Part #8331
MFG #DGAX077BDTA
- Attributes
- Item Features
- Documents
Attributes
Type1-Stage
SeriesDGAX Series
ColorWhite
Connection Size1/2 in FNPT
Flow Rate529 to 1441 cfm
Gas TypeNatural
Input Capacity77000 Btu/hr
Motor TypeConstant Torque ECM Blower
Mounting TypeFloor
Voltage Rating115 VAC
Dimensions19-1/2 in W x 24-3/8 in D x 76 in H
Fuse Size15 A
Output Capacity62000 Btu/hr
Ignition TypeHot Surface
AFUE Rating80 %
Motor HP1/2 hp
Furnace PositionDownflow
Item Features
- Zero clearance feature - allows these furnaces to be installed where space is a premium.
- Molded contoured white upper panel - provides an attractive modern appearance and offers a scratch-resistant, durable appliance finish.
- Pre-painted contoured white lower - panels provide an attractive scratch-resistant appliance finish.
- Built-in coil cabinet - is design matched to work in conjunction with Coleman heat pumps and air conditioners, providing ease of installation and highly efficient operating performance (DGAX model).
- Air conditioner ready DGAX - models have blowers capable of handling up to 4 ton of air conditioning.
- Aluminized steel heat exchanger - provides efficient operation and unmatched corrosion resistance.
- Universal disposal filters - clean the air and are easy to replace.
- Sealed combustion - design draws in combustion air directly from outside, providing quiet operation while increasing operating efficiency and reducing cold drafts.
- Conversion to propane gas is fast and easy, all models are provided with a convertible gas valve and gas orifices for both natural and propane gas.
