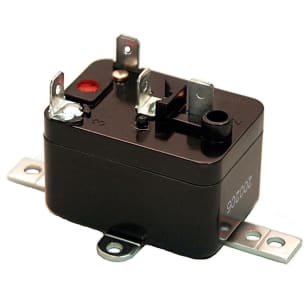

Alltemp 25-90290 Standard Duty Relay, Open Contact, 24 V V Coil
Part #40228
MFG #25-90290
Alltemp 25-90290 Standard Duty Relay, Open Contact, 24 V V Coil
Part #40228
MFG #25-90290
Sign In to See Your Price
Alltemp 25-90290 Standard Duty Relay, Open Contact, 24 V V Coil
Part #40228
MFG #25-90290
- Attributes
- Item Features
Attributes
TypeStandard Duty
Coil Voltage24 V
Contact FormOpen
Frequency Rating50/60 Hz
Terminal Type1/4 in Quick-Connect
Item Features
- -20 deg C (-4 deg F) to 40 deg C (104 deg F) Temperature Range.
- 1,000,000 operations Mechanical Life.
- 100,000 operations (@ 16amp 240VAC Res.) Electrical Life.
- 25 ms at nominal coil voltage Operate Time (typical).
- 25 ms at nominal coil voltage Release Time (typical).
- Dielectric Strength (at sea level for 1 min.): - 2500 Vrms coil to contact. - 1000 Vrms between open contacts.
- Class A (105 deg C / 221 deg F) Coil Insulation.
- Continuous Coil Duty Cycle.
- Silver cerium Contact Material.
- Phenolic Enclosure.
- 90 Coil Resistance DC OHMS ±10%.
- 146 Nominal Current MA.
- 3.5 Nominal VA Sealed.
- 4 Inrush VA.
