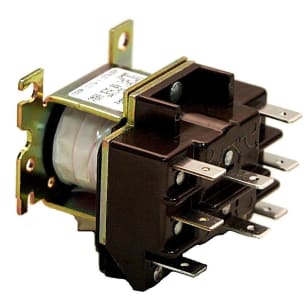

Alltemp 25-90340 Switching Relay, 24 V V Coil
Part #40234
MFG #25-90340
Alltemp 25-90340 Switching Relay, 24 V V Coil
Part #40234
MFG #25-90340
Sign In to See Your Price
Alltemp 25-90340 Switching Relay, 24 V V Coil
Part #40234
MFG #25-90340
- Attributes
- Item Features
Attributes
Coil Voltage24 V
Frequency Rating50/60 Hz
Dimensions2.13 in x 1.88 in x 2.25 in
Terminal Type1/4 in Quick-Connect
Item Features
- -40 deg C (-40 deg F) to 54 deg C (130 deg F) Temperature Range.
- 750,000 operations Mechanical Life.
- 100,000 operations Electrical Life.
- Class B Coil Insulation.
- Continuous Coil Duty Cycle.
- Silver cerium Contact Material.
- Phenolic Enclosure.
- Semi-enclosed compact design.
- Quiet & reliable operations.
- Universal mounting bracket.
- Molded terminal numbers and circuit diagram on top of relay.
- 2 Pole DT mode.
- 15 Coil Resistance DC OHMS ±10%.
- 334 Nominal Current MA.
- 8 Nominal VA Sealed.
- 21.5 Inrush VA.
