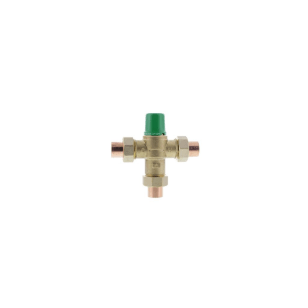

Taco 5003-C3 5000 3-Way Mixing Valve, 3/4 in Nominal, C Union End Style, 230 psi Pressure, 20 gpm Flow Rate, Import
Part #11733
MFG #5003-C3
Taco 5003-C3 5000 3-Way Mixing Valve, 3/4 in Nominal, C Union End Style, 230 psi Pressure, 20 gpm Flow Rate, Import
Part #11733
MFG #5003-C3
Sign In to See Your Price
Taco 5003-C3 5000 3-Way Mixing Valve, 3/4 in Nominal, C Union End Style, 230 psi Pressure, 20 gpm Flow Rate, Import
Part #11733
MFG #5003-C3
- Attributes
- Item Features
- Documents
Attributes
Type3-Way
Series5000
ColorForged Bronze
End StyleC Union
Flow Rate20 gpm
Nominal Size3/4 in
Pressure Rating230 psi
Temperature Rating85 to 176 deg F
Body MaterialForged Brass
Dimensions5 in H x 5.4 in W
MediaWater
Domestic/ImportImport
Trim MaterialPolysulfone
Softgoods MaterialFKM Seal
Item Features
- Suitable for use in potable water.
- Extended mix temperature range of 85-176 deg F (29-80 deg C).
- Low headloss.
- Note flow should never exceed standards for pipe size.
- 2.3 CV, 1 gpm (3.8 lpm) min flow, 120-180 deg F (49-82 deg C) hot supply temperature.
- 27 deg F (15 dg C) min. temperature differential between hot supply and mixed.
- (41 to 45 deg C) 115 to 120 deg F factory.
- 0.25% lead brass, noryl GFN2 internal components.
- Varies (brass, CPVC, copper) fittings.
- EPDM gaskets, stainless steel temperature gauge, brass gauge fitting.
- 5000 series allows for domestic hot water storage at temperatures high enough to increase the effective storage capacity of a water heater, kill harmful bacteria and still be delivered at a safe 120 deg F or less.
- 20 gpm (76 L/Min) Maximum Flow.
- 20% Maximum Variation in Supply Pressure.
- Delivers Stable Mixed Water Temperature.
- Ideal for Domestic Water Distribution Points.
- Optional Dial Gauge and Adaptor.
- Outlet Temperature Strip.
- Sweat, NPT, Pex, Press, CPVC Union Connections.
- Tamper-Resistance Cap.
- ± 3 deg F Accuracy of Outlet Temperature.
