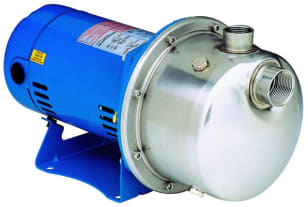

Goulds LB0712 LB Series 1-Stage End Suction Booster Pump, 20 gpm Flow Rate, 1-1/4 in NPT Inlet x 1 in NPT Outlet, 115 to 230 VAC, 1 ph
Part #1249
MFG #LB0712
Goulds LB0712 LB Series 1-Stage End Suction Booster Pump, 20 gpm Flow Rate, 1-1/4 in NPT Inlet x 1 in NPT Outlet, 115 to 230 VAC, 1 ph
Part #1249
MFG #LB0712
Sign In to See Your Price
Goulds LB0712 LB Series 1-Stage End Suction Booster Pump, 20 gpm Flow Rate, 1-1/4 in NPT Inlet x 1 in NPT Outlet, 115 to 230 VAC, 1 ph
Part #1249
MFG #LB0712
- Attributes
- Item Features
- Documents
Attributes
Type1-Stage
SeriesLB Series
Bearing TypeBall
Flow Rate20 gpm
Frequency Rating60 Hz
Inlet Size1-1/4 in NPT
MaterialStainless steel
Outlet Size1 in NPT
Power Rating3/4 hp
Temperature Rating140 deg F
Voltage Rating115 to 230 VAC
Maximum Pressure85 psig
Motor Speed3500 rpm
Phase1 ph
Enclosure TypeOpen Drip-Proof
Impeller TypeNoryl
Item Features
- Casing - Stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connection with stainless steel plug.
- Engineered thermoplastic internal components - Impellers, guide vanes and motor adapters are high strength and light weight engineered composite.
- Mechanical seal - Standard john crane type 6 seal with carbon ceramic faces, Buna-N elastomer and stainless steel metal part.
- Built-in overload with auto reset provided.
- 5 in Dia impeller.
