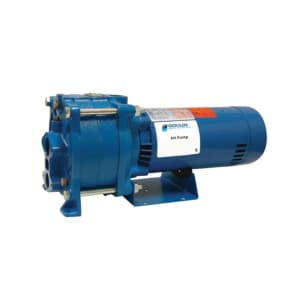

Goulds HSJ07N Convertible Pump Unit, 1-1/4 in NPT Inlet x 1 in NPT Outlet, 1 ph, 3/4 hp, Cast Iron, Domestic
Part #1178
MFG #HSJ07N
Goulds HSJ07N Convertible Pump Unit, 1-1/4 in NPT Inlet x 1 in NPT Outlet, 1 ph, 3/4 hp, Cast Iron, Domestic
Part #1178
MFG #HSJ07N
Sign In to See Your Price
Goulds HSJ07N Convertible Pump Unit, 1-1/4 in NPT Inlet x 1 in NPT Outlet, 1 ph, 3/4 hp, Cast Iron, Domestic
Part #1178
MFG #HSJ07N
Attributes
Item Features
Documents
Attributes
SeriesHSJ
Frequency Rating60 Hz
Horsepower3/4 hp
Inlet Size1-1/4 in NPT
MaterialCast iron
Outlet Size1 in NPT
Temperature Rating140 deg F
Voltage Rating115/230 VAC
Dimensions15 in L x 8 in W x 9 in H
Maximum Pressure60 psi
Motor Speed3500 rpm
Phase1 ph
Domestic/ImportDomestic
Impeller TypeNoryl
Item Features
High capacity and pressure - Specifically designed to deliver high capacities at greater pressures.
Stainless steel pump shaft - Hex design provides positive drive for impellers and eliminates clearance adjustments.
Easy to service - Can be taken apart for service by removing four bolts.
Corrosion resistant - Glass-filled thermoplastic impellers stainless steel wear rings and cover plates electro-coat paint process applied inside and out and then baked on.
Powered for continuous operation - Pump is designed for continuous operation All ratings are within the motor manufacturers recommended working limits.
