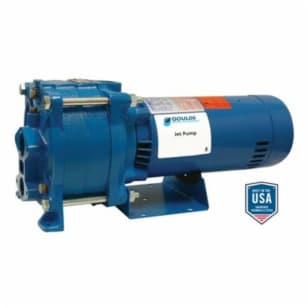

Goulds HSJ10N Multi-Stage Horizontal Convertible Jet Pump, 30 to 50 gpm Flow Rate, 1-1/4 in NPT Inlet x 1 in NPT Outlet, 1 ph, 1 hp
Part #1179
MFG #HSJ10N
Goulds HSJ10N Multi-Stage Horizontal Convertible Jet Pump, 30 to 50 gpm Flow Rate, 1-1/4 in NPT Inlet x 1 in NPT Outlet, 1 ph, 1 hp
Part #1179
MFG #HSJ10N
Sign In to See Your Price
Goulds HSJ10N Multi-Stage Horizontal Convertible Jet Pump, 30 to 50 gpm Flow Rate, 1-1/4 in NPT Inlet x 1 in NPT Outlet, 1 ph, 1 hp
Part #1179
MFG #HSJ10N
- Attributes
- Item Features
- Documents
Attributes
TypeMulti-Stage Horizontal
SeriesHSJ
Flow Rate30 to 50 gpm
Frequency Rating60 Hz
Horsepower1 hp
Inlet Size1-1/4 in NPT
Outlet Size1 in NPT
Temperature Rating140 deg F
Voltage Rating115/230 VAC
Dimensions16 in L x 8 in W x 9 in H
Maximum Pressure30 to 50 psi
Motor Speed3500 rpm
Phase1 ph
Impeller TypeHex
Item Features
- High capacity and pressure - Specifically designed to deliver high capacities at greater pressures.
- Stainless steel pump shaft - Hex design provides positive drive for impellers and eliminates clearance adjustments.
- Easy to service - Can be taken apart for service by removing four bolts.
- Powered for continuous operation - Pump is designed for continuous operation All ratings are within the motor manufacturers recommended working limits.
- Convertible - designed for use on shallow or deep well applications using appropriate Goulds water technology pumps fittings see the performance charts on the following pages for fitting order numbers.
- Stainless steel shaft.
- Built-in overload with automatic reset.
- Clockwise rotation when viewed from motor end.
- 2 stage.
