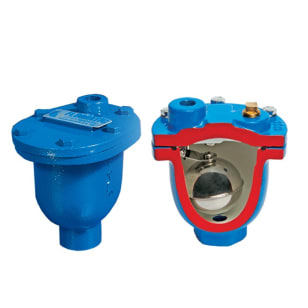

Flomatic 6503 Pressure Valves, 1 in Nominal, 20 to 150 psi Pressure, Cast iron Body
Part #138851
MFG #6503
Flomatic 6503 Pressure Valves, 1 in Nominal, 20 to 150 psi Pressure, Cast iron Body
Part #138851
MFG #6503
Sign In to See Your Price
Flomatic 6503 Pressure Valves, 1 in Nominal, 20 to 150 psi Pressure, Cast iron Body
Part #138851
MFG #6503
- Attributes
- Item Features
- Documents
Attributes
TypeAir Release Valves
ColorBlue
Body MaterialCast iron
Trim MaterialStainless Steel
Item Features
- Vents accumulating air while system is under pressure. Improves flow and pump efficiency.
- Cast Iron Body 3/8 in thru 2 in with Stainless Steel Trim; 3 in and 4 in with Bronze Trim and Stainless Steel Float. BUNA-N Seat.
- Install on high points of pipeline and approximately Every 2000 feet of horizontal segments of pipe.
- Standard orifice is 1/4 in for working pressure max 175 PSI..
