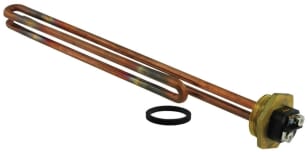

Rheem SP610160 Electric Water Heater Upper Element, 240 V, 4500 W, Copper Sheath
Part #9157
MFG #SP610160
Rheem SP610160 Electric Water Heater Upper Element, 240 V, 4500 W, Copper Sheath
Part #9157
MFG #SP610160
Sign In to See Your Price
Rheem SP610160 Electric Water Heater Upper Element, 240 V, 4500 W, Copper Sheath
Part #9157
MFG #SP610160
- Attributes
- Item Features
Attributes
Mounting TypeThreaded
Voltage Rating240 V
Wattage4500 W
Wattage Density98 W/sq-in
Coil Resistance12.8 Ohm
Sheath MaterialCopper
Item Features
- Nominal Thread Size 1-1/2 in.
- Thread Type Series Designation UNF.
- Threads per Inch 12.
- Hex Head Size - Across Flats (in.) 1-7/8.
- Element Length - Flange to Tip (in.) 13.38.
- Element Diameter (in.) 0.32.
- Configuration Foldback.
- Actual Thread Size - Outside Diameter (in.) 1-1/2.
- Upper position.
- Fused for dry fire protection.
